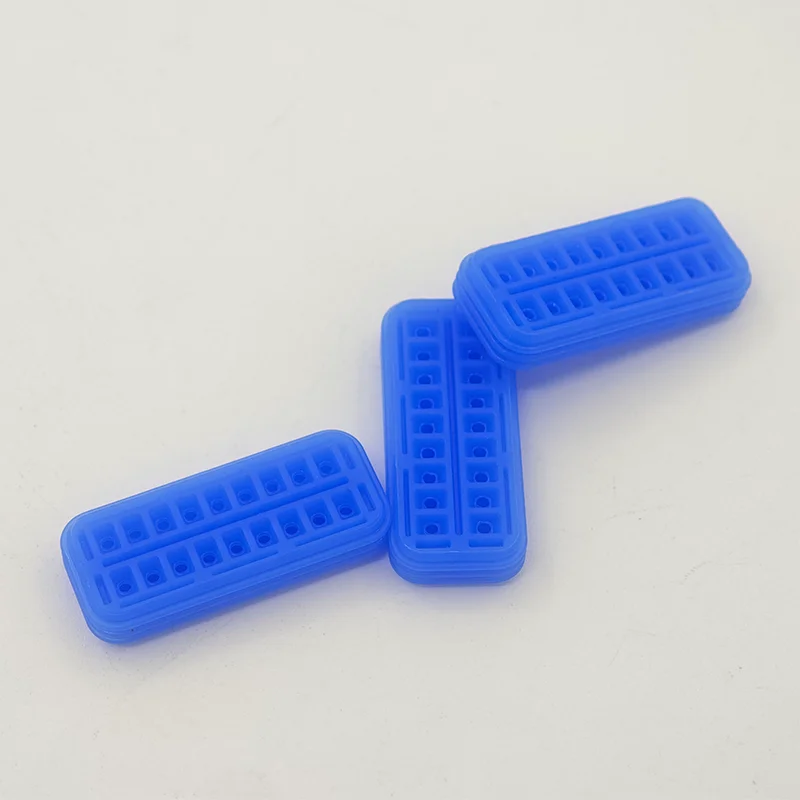

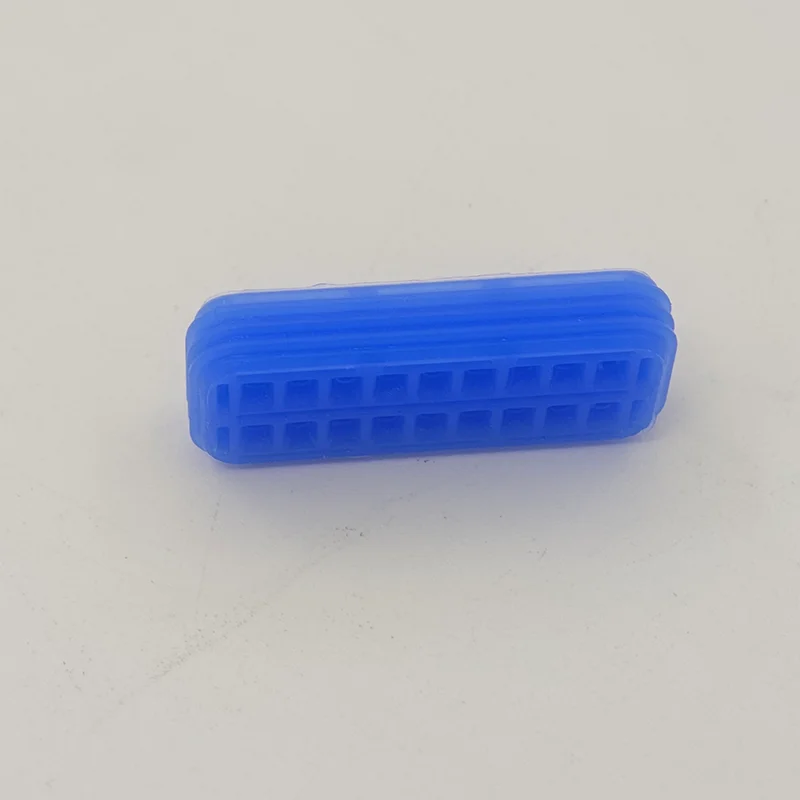

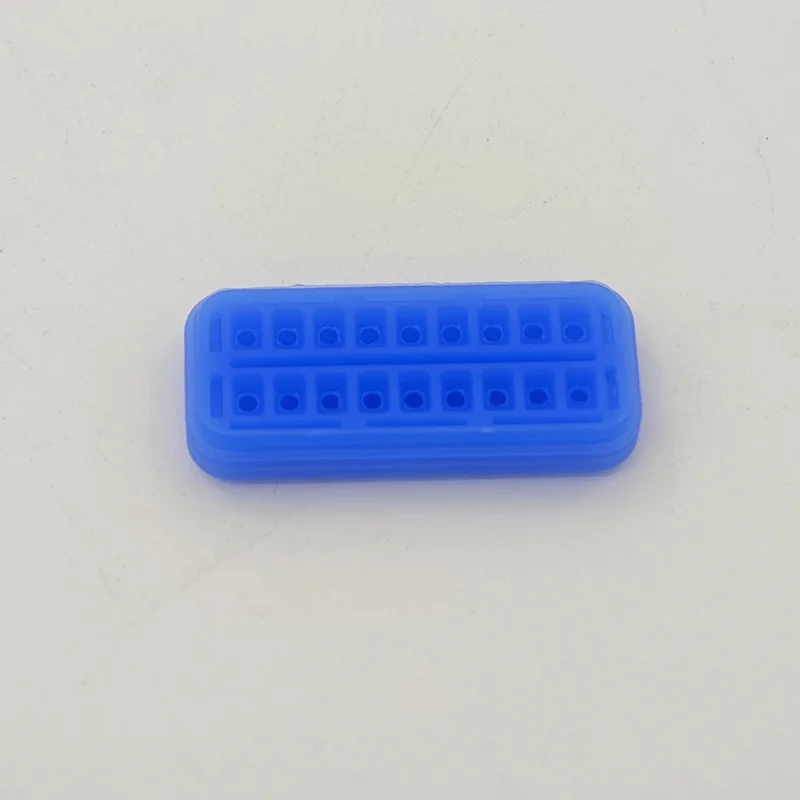

The material of this 18 Pin Hybrid Wire Seal for Connector produced by Zhejiang Guoming Rubber Technology Co., Ltd. is highly tear-resistant and complies with FDA 21 CFR 177.2600 and RoHS certification requirements. It is used in automotive connectors, automotive wiring harnesses, etc.
|
Product Name |
18 Pin Hybrid Wire Seal for Connector |
|
Material |
Silicone Rubber |
|
Color |
10913 Sky blue |
|
Hardness |
35±5 |
|
Performance Requirements |
Tensile strength>3Mpa, elongation at break>200%, tear strength>8Mpa |
|
Size |
27.4*11.7*5.05 in order of length, width and height |
18-pin connector hybrid wire seals have special properties such as high tear resistance, low pressure change, self-permeation, flame retardant, etc. The product maintains stable sealing performance for at least 5 years in a complex environment of high temperature, high pressure, and multiple oils. At the same time, we also have processes such as plane vulcanization, solid injection molding, and liquid injection molding to meet the different styling requirements of different products.

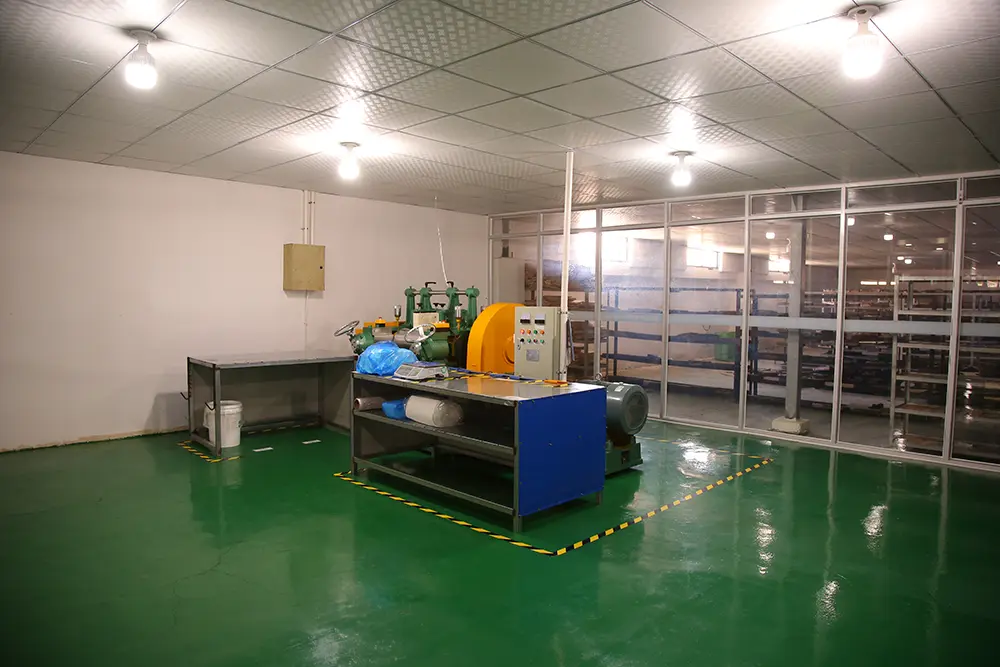

The company has an intelligent rubber mixing workshop equipped with dozens of automated integrated rubber mixing machines, which can realize intelligent mixing and precise batching of rubber raw materials. The professional vulcanization workshop has dozens of advanced flat vulcanizers that can operate simultaneously, and the trimming workshop adopts a human-machine combined operation mode. We strive to make the appearance and dimensions of each product meet high quality standards. This series of automated and manual collaborative production configurations not only ensures the mechanical properties of 18 Pin Hybrid Wire Seal for Connector, but also effectively reduces the defective rate through full-process process control, achieving 100% high-quality product production.
