Why Do Overmolded Plastic and Rubber Seals Outperform Traditional Gaskets In The Real World?

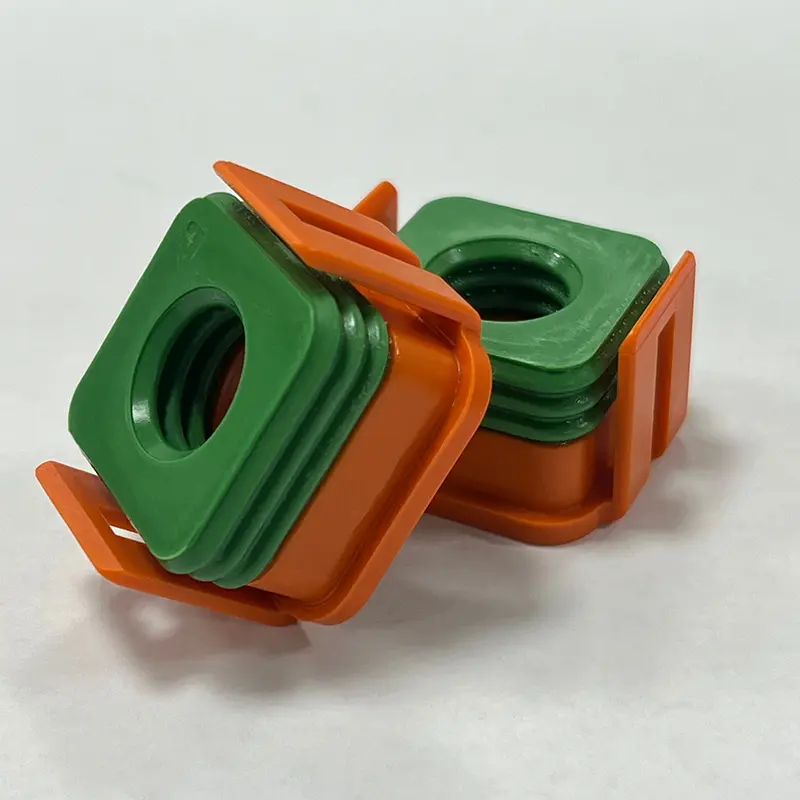

When I build sealing strategies for tough assemblies, I start with what will actually survive vibration, pressure cycles, and careless installs. That is why I work closely with Guoming Rubber and lean on Overmolded Plastic and Rubber Seals—integrated components that lock a compliant elastomer to a rigid plastic carrier so the seal goes in once, seats correctly, and stays put. The idea is simple, the gains are not: cleaner lines, fewer parts, and test benches that stay quiet.

What pain points do these integrated seals remove?

• Misalignment headaches vanish because the elastomer rides on a molded locator that naturally finds home in the housing.
• Leak scatter tightens because compression height and bead geometry are baked into the part, not left to chance during assembly.
• Piece count drops, which trims inventory, handling, and failure modes tied to loose gaskets.
• Service life improves as the bonded interface resists walk-out, micro-movement, and fretting under vibration.
• Operators move faster with fewer retries, giving more stable yields on mixed-skill shifts.

When do I choose integrated designs over loose O-rings?

• When the groove is shallow or interrupted and a free O-ring won’t sit consistently.
• When the seal must bridge multiple planes or wrap around features on a single carrier.
• When poka-yoke assembly is mandatory to avoid upside-down or missing-part defects.
• When I need a branded look with a tidy, repeatable interface that still hits cost targets.
• When qualification time favors stability and fewer variables from the start with Overmolded Plastic and Rubber Seals.

How do I make the stack-up behave under pressure and temperature?

• Target 15–30% squeeze on primary beads and guard against over-compression with carrier stops.
• Blend bead heights so the first contact line finds pressure quickly without creating a knife-edge.
• Use draft and fillets that support flow during the overmold, avoiding knit lines at the sealing lip.
• Design the carrier to carry loads, letting the elastomer only seal; structure lives in plastic, sealing lives in rubber.
• Validate early with air decay and pressure hold so I can tune bead geometry before locking tools for Overmolded Plastic and Rubber Seals.

Which rubber to plastic combinations work best for bonding?

I pick the pair based on media, temperature, and bonding chemistry. The table below summarizes combinations I use frequently and how they behave in common conditions for Overmolded Plastic and Rubber Seals.

How do I keep bonding reliable over time?

• Match thermal expansion so the joint sees low stress across hot and cold cycles.
• Specify surface prep on the carrier, then pair with a primer or tie-layer chemistry proven for that polymer.
• Add mechanical interlocks or micro-undercuts where possible so the joint is both chemical and physical.
• Protect bonding lands from mold-release contamination and high shear gate locations.
• Confirm durability with peel, shear, and thermal-shock tests on finished Overmolded Plastic and Rubber Seals.

Why does DFMA matter more than a low piece price on a quote?

• Integrated parts cut fasteners and secondary ops, which often outweigh a slightly higher unit cost.
• Shorter assembly time and fewer misbuilds show up as real money in line efficiency metrics.
• Inline test yields climb when bead heights are controlled by the tool, not by human feel.
• Packaging is simpler because one protected unit replaces multiple small consumables.

Where do these seals shine across industries?

• Automotive modules where oil, coolant, or vapor must be kept on the right side of thin walls.
• Water management and HVAC panels that need soft sealing around bosses and ribs without messy RTV.
• Electronics housings that benefit from EMI gaskets co-molded with carriers for clean assembly.
• Appliance and industrial pumps that need stable sealing after long idle periods.

What inspection plan keeps leaks off the line?

• Air decay or pressure hold at production rates to validate every cavity family.
• Vision checks on bead height, flash, and gate vestige at critical features.
• Incoming plastic carrier audits for surface energy and cleanliness before overmolding.
• Periodic destructive bond tests to catch drift long before customers do.

How do I write a spec that protects long-term performance?

• Define media exposure, pressure, and cycle counts the seal actually sees in service.
• Call out compression targets with hard stops in the carrier, not just in text.
• Include aging profiles for heat, fluid soak, and thermal shock on finished Overmolded Plastic and Rubber Seals.
• List acceptable elastomer families and minimum bond strength values tied to the chosen plastic.
• Require tool steel and cavity balance practices that hold bead geometry across lots.

Why do I partner with Guoming Rubber for programs under deadline pressure?

Because the team is set up for design for manufacturability conversations, quick sampling, and practical validation. I can iterate bead geometry, runner strategy, and bonding chemistry in days, not months, then scale with stable tooling. That combination makes Overmolded Plastic and Rubber Seals a low-risk choice even when timing is tight and the test plan is demanding.

What should I include in an RFQ to get an accurate and fast quote?

• 3D models with marked sealing lands, intended squeeze, and any hard stops or ribs.
• Target media, temperature window, pressure, and expected life cycles.
• Preferred elastomer family and durometer or the problem statement so material can be proposed.
• Annual volumes, ramp curves, and packaging preferences.
• Quality checkpoints you need at the press for finished Overmolded Plastic and Rubber Seals.

Are you ready to cut leakage risk while simplifying your build?

If you want a cleaner line, tighter test results, and a bill of materials that behaves, I can help shape a practical design and sourcing path for Overmolded Plastic and Rubber Seals. Share a model, describe the media and pressures, and let’s turn the problem into a stable component. For samples, DFM feedback, or a production quote, contact us today and tell me where you need the seal to win.
