What Are Automotive Connector Seals and Why Are They Crucial?
How Do Connector Seals and Gaskets Enhance Vehicle Reliability?
Detailed Product Specifications of Automotive Connector Seals
Frequently Asked Questions About Automotive Connector Seals

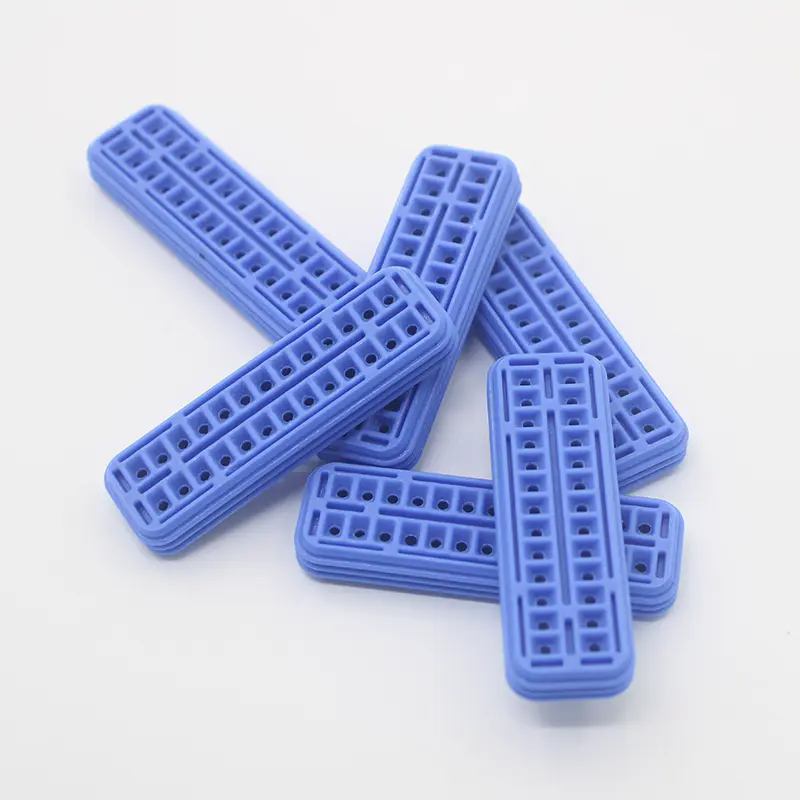

Automotive Connector Seals are specialized components designed to protect electrical connections in vehicles from environmental factors such as dust, water, chemicals, and vibration. These seals ensure the continuity of electrical systems, prevent corrosion, and maintain vehicle performance.
The increasing complexity of automotive electronics, from engine control units to advanced driver-assistance systems (ADAS), has made reliable connector sealing more important than ever. Poor sealing can lead to intermittent electrical failures, which in critical systems can result in costly repairs or safety risks.
Automotive Connector Seals are typically made of high-quality elastomers such as silicone, EPDM, or fluororubber. These materials provide excellent flexibility, chemical resistance, and temperature tolerance, allowing seals to perform effectively in harsh automotive environments.
Protection Against Contaminants: Dust, dirt, and moisture can degrade electrical performance.
Corrosion Prevention: Seals prevent water and chemical exposure that causes connector corrosion.
Vibration Resistance: Automotive seals maintain connection integrity under constant vibration and mechanical stress.
Temperature Stability: High-quality elastomers ensure connectors operate effectively from extreme cold to high heat.
Automotive Connector Seals and Connector Gaskets work together to ensure robust electrical connections in vehicles. While connector seals are inserted into the connector housing to protect individual pin connections, connector gaskets provide an additional layer of environmental protection by sealing the overall connector interface.

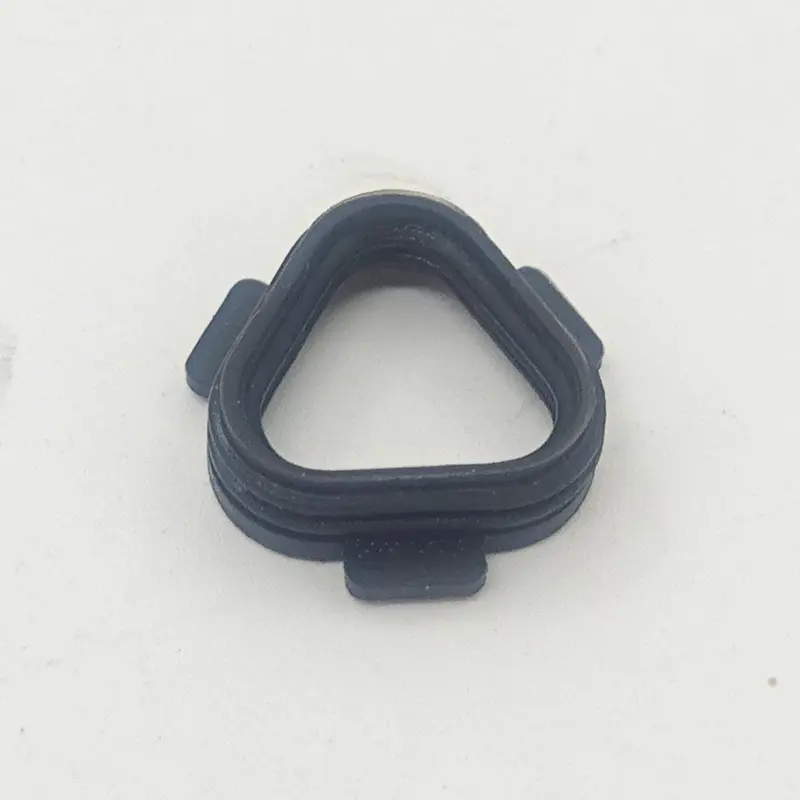

Connector Gaskets are typically made from similar elastomers as seals and are designed to compress and fill gaps between connector halves. This prevents ingress of water, dust, and other contaminants into the connector assembly.
The synergy between connector seals and gaskets enhances vehicle reliability by:
Maintaining consistent electrical contact.

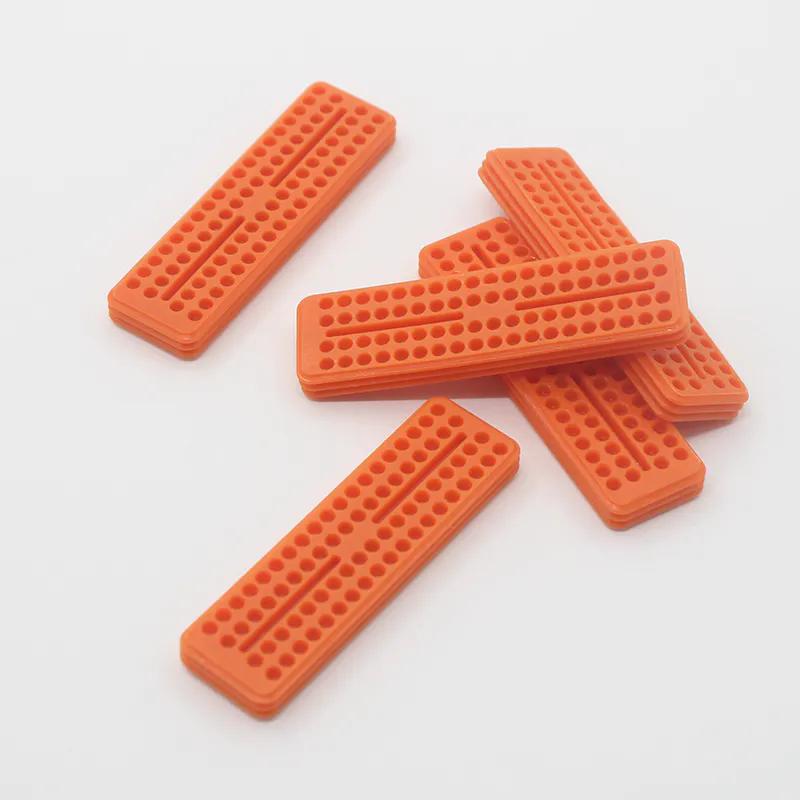

Reducing maintenance costs caused by connector failures.
Extending the lifespan of critical electronic components.
| Feature | Connector Seal | Connector Gasket |
|---|---|---|
| Location | Inserted around individual pins | Installed between connector halves |
| Primary Function | Protects pin connections | Seals the connector interface |
| Material | Silicone, EPDM, Fluororubber | Silicone, EPDM, Nitrile Rubber |
| Environmental Protection | Dust, moisture, chemicals | Dust, water ingress, vibration |
| Temperature Range | -40°C to 150°C | -40°C to 120°C |
| Reusability | Generally reusable | Often replaceable during connector maintenance |
By understanding the differences and complementary functions of these two components, automotive engineers can optimize connector reliability in demanding applications such as engine compartments, exterior sensors, and hybrid vehicle systems.
Automotive Connector Seals are produced to meet rigorous automotive standards such as ISO 16750, IEC 60529 (IP protection levels), and OEM-specific requirements.
Below is an example of a professional product specification table for a series of connector seals:
| Model | Material | Operating Temp | Hardness (Shore A) | IP Rating | Chemical Resistance | Application |
|---|---|---|---|---|---|---|
| GMS-001 | Silicone Rubber | -40°C to 150°C | 60 | IP67 | Oil, Coolant, Fuel | Engine, Sensors |
| GMS-002 | EPDM | -40°C to 120°C | 70 | IP68 | Water, Salt Spray | Exterior Lighting, Sensors |
| GMS-003 | Fluororubber (FKM) | -20°C to 200°C | 75 | IP69K | Fuel, Chemicals, High Heat | Fuel System, Turbo Sensors |
| GMS-004 | Nitrile Rubber | -30°C to 120°C | 65 | IP66 | Oil, Grease | Transmission, Chassis Sensors |
| GMS-005 | Silicone/EPDM Blend | -50°C to 160°C | 68 | IP67 | Multiple Fluids | Hybrid & Electric Vehicle Connectors |
Key Features of These Connector Seals:
High Temperature Resistance: Suitable for engine and under-hood applications.
Chemical Compatibility: Resistant to automotive oils, fuels, and cleaning solvents.
Elastic Recovery: Maintains sealing performance even after repeated compression cycles.
Precision Fit: Customizable to various pin sizes and connector shapes to prevent leaks.
Compliance: Meets or exceeds automotive industry standards for durability and environmental protection.
Q1: How can I tell if a connector seal is failing?
A1: Signs of a failing connector seal include intermittent electrical signals, corrosion on pins, or moisture accumulation inside the connector. Regular visual inspection and resistance testing can identify potential seal failures before they cause major issues.
Q2: Why is material selection important for connector seals?
A2: Material determines a seal’s resistance to temperature, chemicals, and environmental factors. Silicone offers high temperature and flexibility, EPDM resists water and salt, while fluororubber provides chemical resistance. Choosing the right material ensures reliable connector performance in specific applications.
Q3: How often should connector seals and gaskets be replaced?
A3: Replacement depends on usage conditions. Under extreme temperatures or chemical exposure, seals may degrade faster. Routine maintenance checks every 2–5 years are recommended, and any signs of cracking, hardening, or deformation indicate the need for immediate replacement.
Automotive Connector Seals and Gaskets are a critical investment for maintaining vehicle reliability and safety. High-quality seals reduce maintenance costs, improve electrical integrity, and ensure long-term durability of automotive electronics. Guoming Rubber provides precision-engineered connector seals that meet strict industry standards and are tailored for both conventional and advanced vehicle systems.
For detailed specifications or custom solutions for Automotive Connector Seals, contact us today to ensure your vehicles maintain peak performance in all operating conditions.
