When inspecting wiring harness faults in customer vehicles, I always encounter the same issue: moisture ingress causing pin corrosion, where a cheap seal ultimately renders the control module unusable.That is why I take Automotive Connector Seals seriously. Over the past two years, I have increasingly specified solutions from Guoming Rubber for programs that need proven reliability without gold-plated pricing—not because a brand name sounds nice, but because their sealing sets consistently hit the IP67 target in my validation builds and hold up under tear and stretch during install and rework.
According to functions and application scenarios, I usually break the selection into three families that cover 95% of the harness:

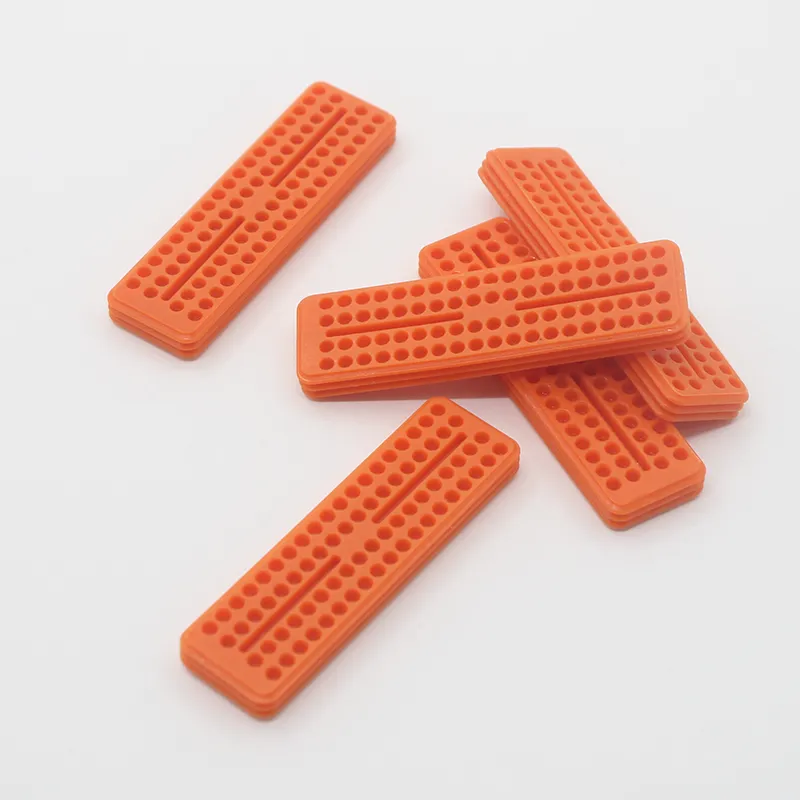

Connector seals
These are perimeter seals that sit between plug and receptacle housings to keep water and dust out of the mated interface.
Connector gaskets
These pad or frame gaskets compensate for housing flatness, flange irregularities, or cover plates around bulkhead connectors.
Single-wire seals
These sit on individual wires at the cavity entry to stop capillary water travel along the conductor into the connector body.
They deliver waterproofing and dustproofing at the source instead of relying on service grease that breaks down over time.
They stabilize electrical performance by preventing electrolytic corrosion and fretting at terminals.
They reduce warranty churn tied to intermittent CAN faults, sensor dropouts, and HV isolation errors.
| Scenario | Primary Risk | Best Seal Type | Go-To Material | Fit Notes | Field Tips |
|---|---|---|---|---|---|
| Wheel well ABS harness | High pressure spray, grit | Connector seal plus single-wire seals | Silicone or FKM | Slightly higher compression set allowed | Verify IP67 with pressure spray after 24h thermal soak |
| Engine bay near turbo | Heat and oil splash | Single-wire seals | FKM or HNBR | Use oil-resistant compound | Avoid silicone near persistent oil mist |
| Roof ADAS camera | UV and condensation | Connector gasket | UV-stabilized silicone | Low compression set is critical | Add drain path for dew events |
| Trunk well battery pack LV | Splash and capillary | Single-wire seals | EPDM or silicone | Tight wire OD control | Crimp pull test before seal seat |
| HV inverter coolant adjacency | Glycol exposure | Connector seal | EPDM or FKM | Check swell spec in coolant | Re-torque housing latch after hot soak |
In my builds, Guoming-spec perimeter seals have repeatedly met IP67 when properly compressed, and their compounds handled install stress thanks to high tear resistance and stretch resistance, which matters when techs repin or rework in the bay.
Silicone
Great low-temperature elasticity, strong against water and ozone. I use it for exterior sensors and roof modules.
FKM
Strong oil and fuel resistance with higher heat capability. I like it around engine and transmission harnesses.
EPDM
Excellent weathering and water resistance at a good cost. I use it for general body and undercar applications.
HNBR
Balanced heat and oil performance. A solid option for under-hood grommets and single-wire seals.
I follow three pragmatic rules:
Wire OD minus 5–12% for the seal inner diameter so I get a snug interference fit without shaving insulation.
Housing bore minus 8–20% for the seal outer diameter so compression happens at assembly, not just on paper.
Compression set under 25% after 22 hours at 125 °C as a quick screen for long-term elasticity.
When I source from Guoming Rubber, I ask for actual wire OD windows they validated rather than nominal AWG charts, because jacket thickness varies widely by supplier.
Capillary creep along strands because the single-wire seal is too loose or the crimp bellmouth is over-opened.
Over-compression that flattens the perimeter seal so it springs back poorly after temperature cycles.
Chemical swell from oil or coolant that the compound was not formulated to handle.
Install tears when a tech stretches a seal past its design elongation during rework.
I mitigate these by pairing compound to fluid exposure, checking actual wire OD, and giving technicians a short install note with acceptable elongation and lube guidance.
They do, and here is how I adapt:
High voltage isolation demands consistent sealing to keep moisture away from HV connectors and busbars. I verify leakage resistance after humidity soak.
Miniaturized camera and radar connectors leave little compression margin. I prioritize low compression set silicones.
Thermal cycling in sealed camera housings makes breathing paths critical. I add vent membranes so seals are not forced to equalize pressure.
Fast-charge coolant proximity raises the bar for glycol resistance. I spec EPDM or FKM with documented swell limits.
IP67 dunk after three thermal cycles from −40 °C to 85 °C with 30-minute dwells
Salt fog for 48–96 hours followed by terminal millivolt drop checks
Dielectric withstand for HV connectors after humidity soak
Pull test on sealed leads to confirm the seal did not nick insulation
Dimensional spot checks on wire OD and bore ID each lot
Guoming’s samples I used cleared these screenings consistently, which saved me from iterating mold changes mid-program.
Can I get material certification showing oil, fuel, and coolant swell data at my temperatures
What is the tear strength and ultimate elongation so I know rework is safe
Do you supply lot-traceable color codes to keep line mix-ups low
Can you cut tools for custom lip geometry if my housing has limited latch force
Will you commit to IP67 performance when assembled per my compression target
For Guoming Rubber, I have requested process capability data on critical dimensions and received stable Cp/Cpk reports, which helped me sign off PPAP faster.
I use a perimeter connector seal to defend the mated interface.
I add a connector gasket when the connector sits on a panel or cover that is not perfectly flat.
I finish with single-wire seals to stop water travelling along each conductor.
This three-layer approach keeps water from the outside, from the mounting surface, and from the inside lead-in. It is simple, and it works.
Their sealing sets have repeatedly reached IP67 in my line-side audits when I hit the recommended compression.
The compounds I used showed high tear resistance and stretch resistance, which reduced scrap during repins and late harness tweaks.
Lead times have been manageable for pilot and SOP phases, and custom lip profiles came back with minimal iteration.
I am not interested in flashy brochures. I want stable sealing that survives real torque guns, hurried installs, and a winter’s worth of road salt. That is what I have seen in practice.
Do wire ODs match the seal window on the drawing
Does the housing bore actually measure inside tolerance after molding
Have I confirmed compression after latch engagement at both −30 °C and 80 °C
Did I run at least one post-rework IP67 check to simulate field service
Did I verify chemical compatibility against actual fluids on the vehicle
| Seal Family | Where I Use It | What It Solves | My Material Pick | My Red Flag |
|---|---|---|---|---|
| Connector seal | Exterior sensors, wheel wells | Spray, grit, splash | Silicone or EPDM | Over-flattened lips after cycling |
| Connector gasket | Bulkheads, covers, housings | Panel flatness and micro-leaks | Silicone | Cut or nicked corners during install |
| Single-wire seal | Any cavity with lead-in | Capillary moisture along strands | HNBR or FKM near oil | Wrong wire OD causing leaks |
If you are wrestling with water ingress or intermittent faults tied to leaky interfaces, I am happy to review drawings and propose a seal stack that matches your environment and budget. If you want a direct manufacturing option, I can connect you with the Guoming Rubber team I have worked with for Automotive Connector Seals that hit IP67 with dependable tear and stretch performance. Contact us with your wire OD range, housing bore, fluids in play, and target tests, and we will get you samples and pricing. If you already know what you need, send an inquiry now and I will prioritize your review.
