In today’s fast-paced world of automotive engineering, industrial machinery, aerospace systems, and consumer electronics, the demand for reliability in electrical connections has never been higher. A single point of failure in wiring harnesses, sensors, or control systems can lead to costly downtime, safety hazards, and performance inefficiencies. That is why Connector Seals have emerged as a fundamental component across industries.

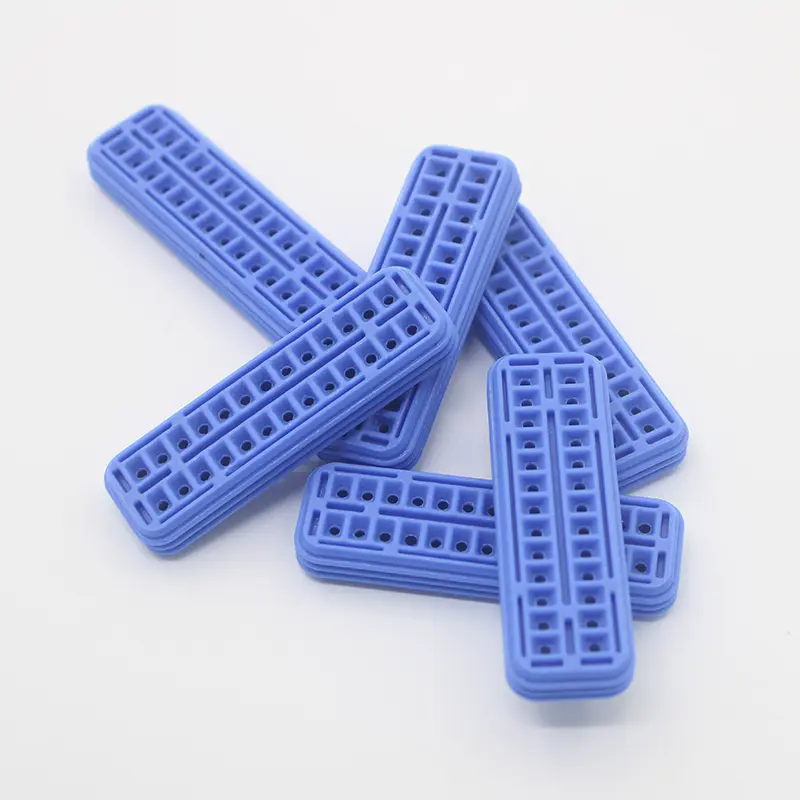

A connector seal serves as a protective barrier that prevents dust, moisture, vibration, and chemical contaminants from infiltrating electrical connectors. By maintaining a tight and durable seal, these components extend the lifespan of wiring systems, reduce maintenance costs, and ensure safety and performance consistency.
Electrical systems are constantly exposed to harsh environments, especially in industries such as automotive, marine, and industrial automation. Connector seals provide:
Moisture Resistance: Prevents water intrusion that can lead to short circuits.
Dust Protection: Blocks particles from interfering with conductivity.
Chemical Shielding: Resists oils, fuels, and cleaning agents in industrial or automotive settings.
Temperature Durability: Maintains integrity across extreme heat and cold.
Without a proper seal, connectors are prone to oxidation and corrosion. This results in increased resistance, voltage drops, or intermittent connectivity—issues that compromise performance. Seals ensure:
Stable signal transmission
Reduced electrical losses
Long-term reliability of the system
In sectors like aerospace, medical devices, and automotive electronics, reliability directly translates into safety. Connector seals minimize risks of fire hazards, sensor failure, or malfunction due to environmental exposure.
To evaluate connector seals, engineers must consider multiple parameters. Below is a professional table highlighting common specifications and features:
| Parameter | Specification / Options |
|---|---|
| Material | Silicone rubber, fluorosilicone, EPDM, NBR |
| Operating Temperature | -40°C to +150°C (standard), up to +200°C for high-performance seals |
| Ingress Protection | IP67 / IP68 / IP69K ratings available |
| Chemical Resistance | Resistant to oils, fuels, coolants, solvents, cleaning fluids |
| Compression Set | Low compression set to maintain sealing performance over repeated use |
| Color Options | Standard black, gray, custom colors for easy identification |
| Hardness (Shore A) | 40–70 depending on application requirements |
| UV & Ozone Resistance | High resistance to aging in outdoor environments |
| Certifications | RoHS compliant, REACH compliant, automotive grade (IATF 16949 certified suppliers) |
Precision Molding: Ensures tight tolerances for proper fit.
Elastic Recovery: Allows repeated insertion/removal without performance loss.
Versatility: Compatible with a wide range of connector types (automotive, industrial, medical).
Customization: Can be designed to meet specific customer requirements.
Automotive: Wiring harnesses, engine sensors, ECU connectors.
Industrial Machinery: Robotics, control panels, heavy-duty equipment.
Marine: Navigation systems, underwater sensors, power connectors.
Aerospace: Avionics, flight control systems, satellite electronics.
Medical Devices: Diagnostic machines, surgical equipment, monitoring systems.
Choosing the correct connector seal involves evaluating both environmental conditions and performancerequirements. Below are the key considerations:
Exposure to Water or Fluids: Choose seals with IP68/IP69K ratings for submerged or high-pressure conditions.
Temperature Extremes: Opt for silicone or fluorosilicone seals for heat resistance.
Chemical Exposure: For automotive or industrial fluids, NBR or fluorosilicone is preferred.
Compression Force: Ensure the seal fits snugly without excessive force.
Flexibility: Select materials with proper elasticity for repeated use.
Durability: Check compression set ratings for long-term performance.
For global supply chains, compliance with RoHS, REACH, and automotive standards is critical.
Not all connector seals are manufactured equally. Partnering with an experienced supplier ensures:
Access to high-grade raw materials
Advanced molding technology
Quality assurance with stringent testing
Q1: What is the lifespan of a connector seal?
A high-quality connector seal can last 10–15 years depending on material composition and environmental conditions. Silicone and fluorosilicone typically offer the longest durability due to superior resistance to heat and chemicals.
Q2: Can connectorseals be reused after disassembly?
Yes, but only if the seal maintains elasticity and shows no visible signs of wear. Over time, seals may experience compression set, reducing their effectiveness. For critical applications, replacement during maintenance is recommended.
Connector seals may appear as small components, but their role in ensuring electrical reliability is immense. They safeguard systems against environmental stress, enhance performance, and provide peace of mind across industries. As technology advances and applications demand higher reliability, the importance of high-quality connector seals will only grow.
At Guoming, we deliver connector seals that meet stringent international standards, ensuring optimal performance across automotive, industrial, and aerospace applications. Our products are precision-engineered, customizable, and built to last.
For detailed specifications, technical support, or bulk orders, contact us today and discover how our connector seals can enhance the reliability of your systems.
