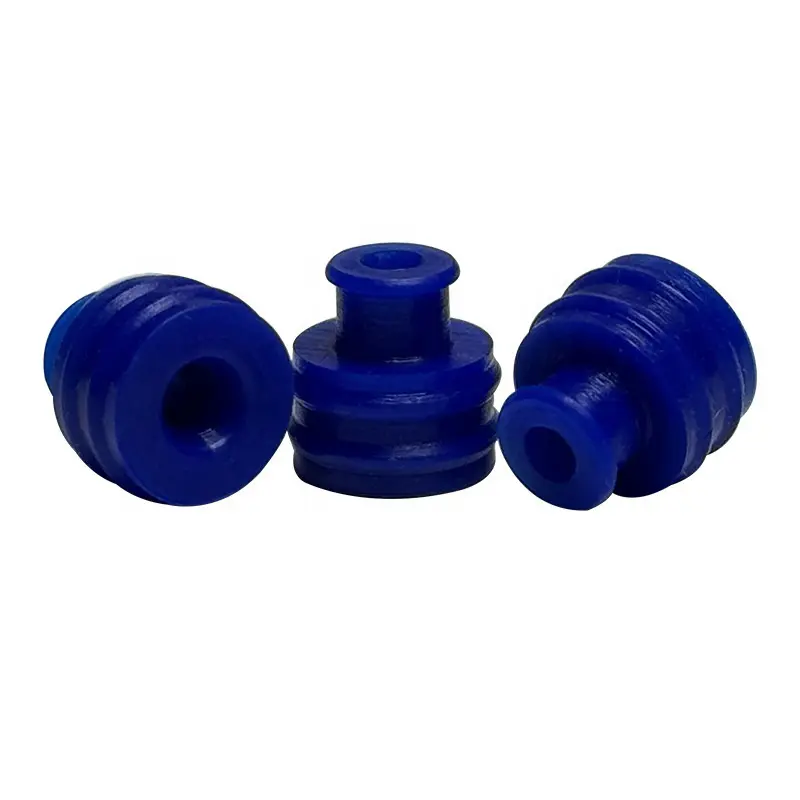

Waterproof Single Wire Seal Blue

In what situations would you need such a little Waterproof Single Wire Seal Blue?

The wiring harness has to go through the connector, but once water gets into that output hole, the terminals turn green and the signals get messed up.

Driving in the rain, using a high-pressure car wash hose, water creeps along the wire insulation into the plug

During assembly on the production line, we hope the seals are easy to fit and press, and that even if the wire diameter is a little off, it can still be installed.

Its waterproof logic can be summed up in just three sentences when you break it down.

The wire goes through the hole first — the center through-hole sticks to the wire insulation. This is the first seal; if water tries to creep along the wire, it gets blocked first.

Rib compression—three waves of ribs on the main body are pressed into the connector holes, fitting closely at multiple points with the hole walls, so water can't find any gaps to seep through.

The trumpet-shaped tube is smooth — the top has a narrow neck with a trumpet opening to guide the wiring direction, making assembly straight and ensuring a tight seal.

The three reinforcing bars aren't just for decoration: assembly inevitably has some deviations. If one bar is misaligned, the other two can still support it—that's the point of having multiple circular bars.

Product Parameter (Specification)

Engineer’s perspective

There are two things worst for assembly: too tight and it won’t go in, too loose and it won’t seal. Having three ring ribs gives more points of contact, which uses elasticity to accommodate wire diameter tolerances—whether it’s a bit thick or thin, there’s a rib to support it, so the pressing force is just right and won’t damage the terminal.

Purchasing perspective

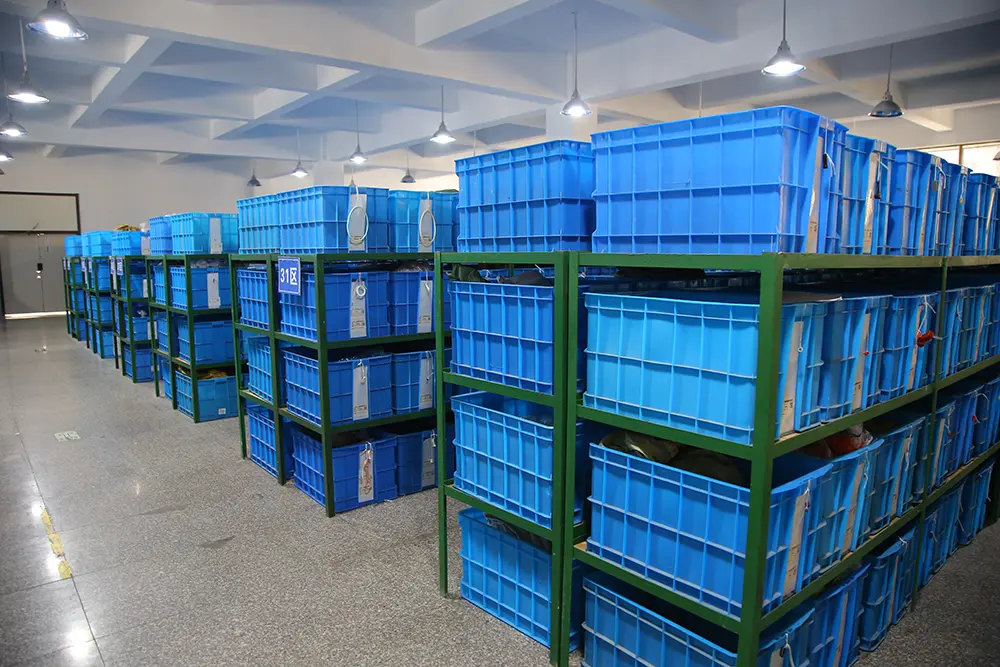

No detours in the process: drawings or actual items → samples → installation verification → production scheduling. Regular molds are kept in stock, and small batches can be ordered. The factory is in Wenzhou; you’re welcome to visit to check the materials, molds, and inspection stations—it’s more reliable than just hearing an introduction.

Materials Technology Perspective

Half the value of a seal comes from the material. Standard silicone bounces back well and resists aging; for oily conditions, switch to EPDM; if you need extra oil and solvent resistance, go with NBR. Using the same mold with different material basically gives you a product for a different working condition.

Quality inspection perspective

Before leaving the factory, there are three checks: first piece for size, random inspections for appearance during the process, and a manual plus equipment double-check before shipping. The process sounds simple, but it’s just daily repetitive grunt work—small parts, big problems if something goes wrong.

I have been developing and manufacturing sealing parts for nearly 20 years, and I hold great respect for water-related sealing challenges. GM681372 may look like a tiny component, yet every unit fitted onto vehicles carries one firm commitment: block water ingress effectively.
